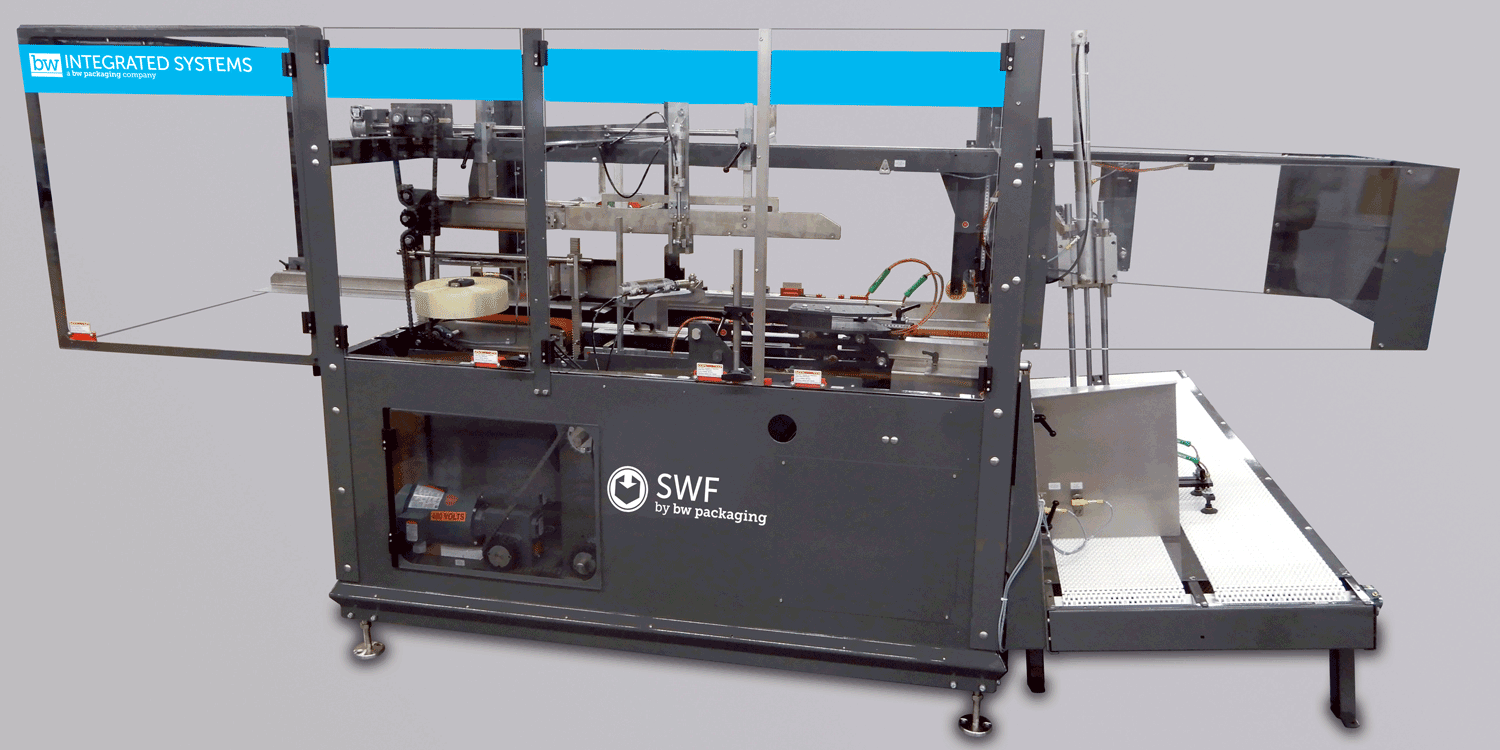

The SWF CE Series of Case Erectors, include the highly efficient CE 420T and CE 425G models. These state-of-the-art machines are designed to effortlessly select, erect, square, and seal the bottom flaps of regular-slotted (RSC) and half-slotted (HSC) corrugated cases, streamlining your packaging process.

CE 420T and CE 425G Models: Unmatched Performance

The CE 420T operates with an impressive sealing mechanism using tape, achieving speeds of up to 20 cases per minute. In contrast, the CE 425G model enhances efficiency by applying a predetermined glue pattern for even faster operation, reaching speeds of up to 25 cases per minute. Please note that actual speeds may vary based on model configuration and case size.

Innovative 6-Foot Right-Angle Magazine

Both models come equipped with an advanced 6-foot right-angle magazine, with an optional powered magazine available to facilitate a seamless transition between stacks of cases. This feature ensures uninterrupted operation, no matter the case variations, as our intelligent case selection system handles warped boards and other irregularities smoothly.

User-Friendly Operation with Advanced Technology

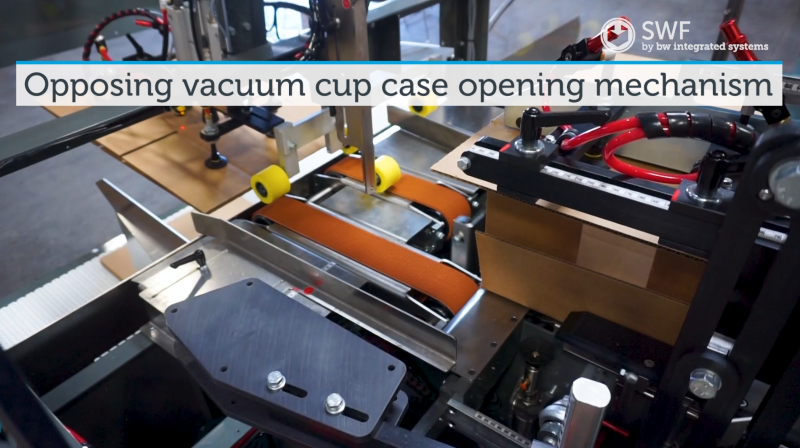

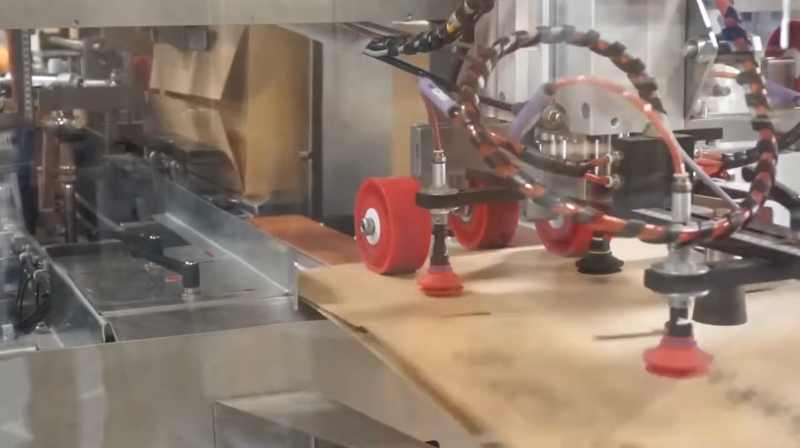

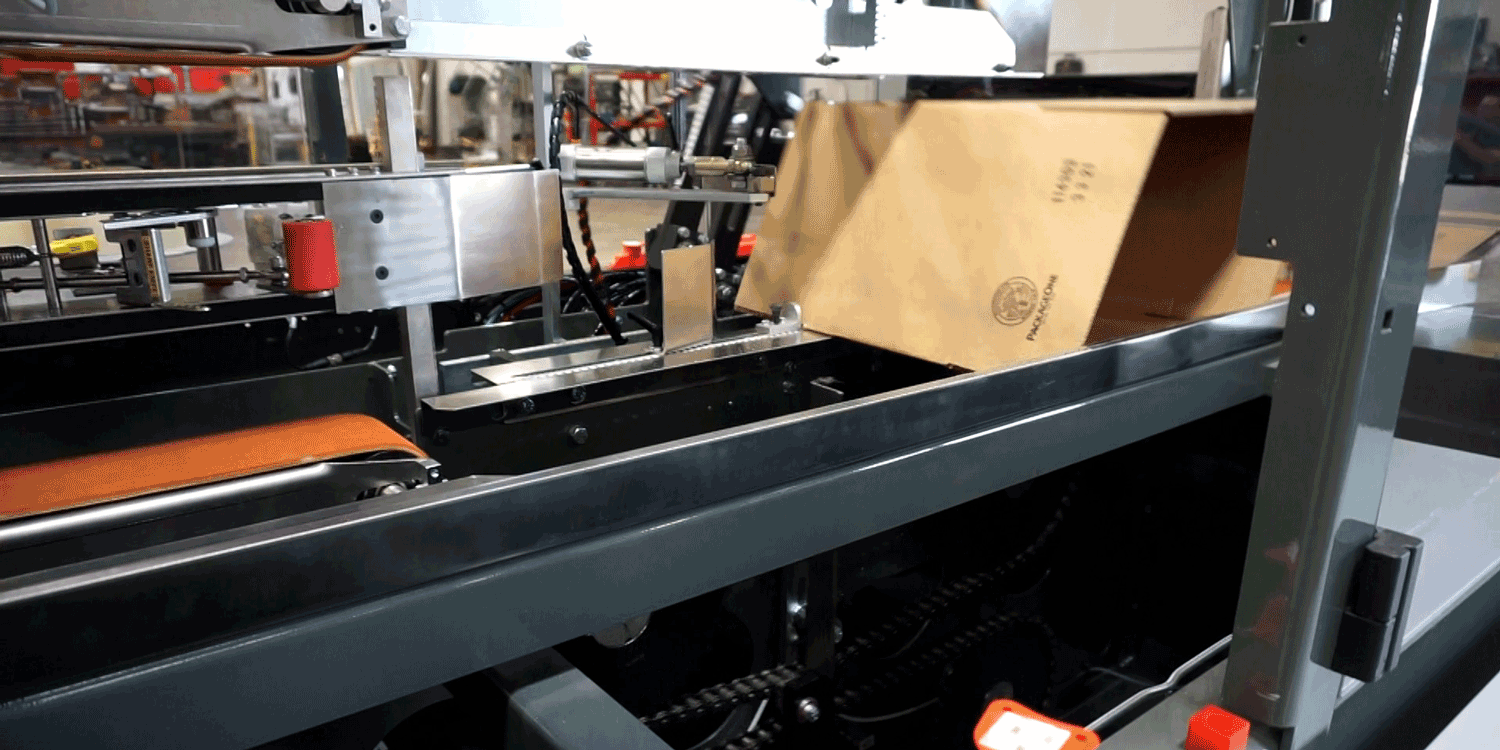

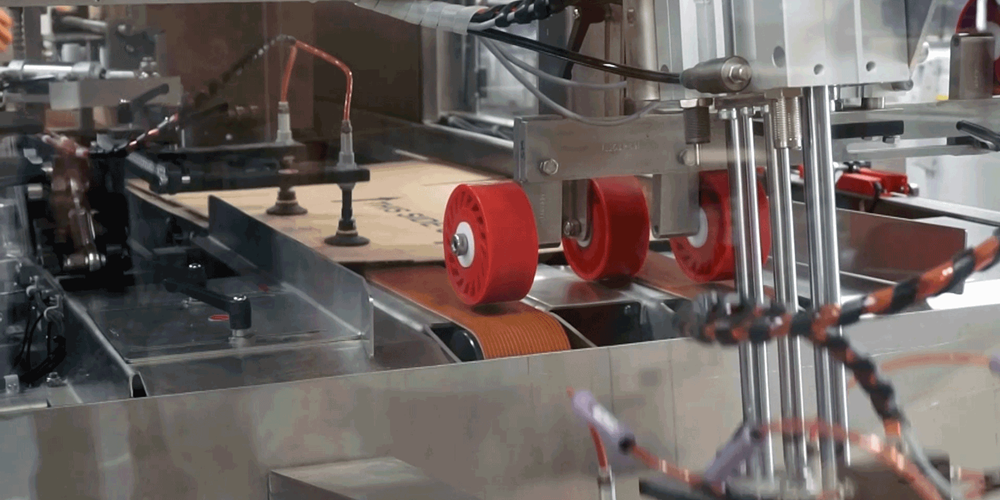

Operating the CE Series Case Erectors is simple and efficient. Start by loading a stack of cases into the magazine, and our vacuum cups will do the rest. They efficiently select a case from the top of the stack and transport it to the erecting station, where an advanced vacuum cup system opens and erects the case. The minor flaps at the front and rear fold inward at a 90-degree angle, followed by the major flaps.

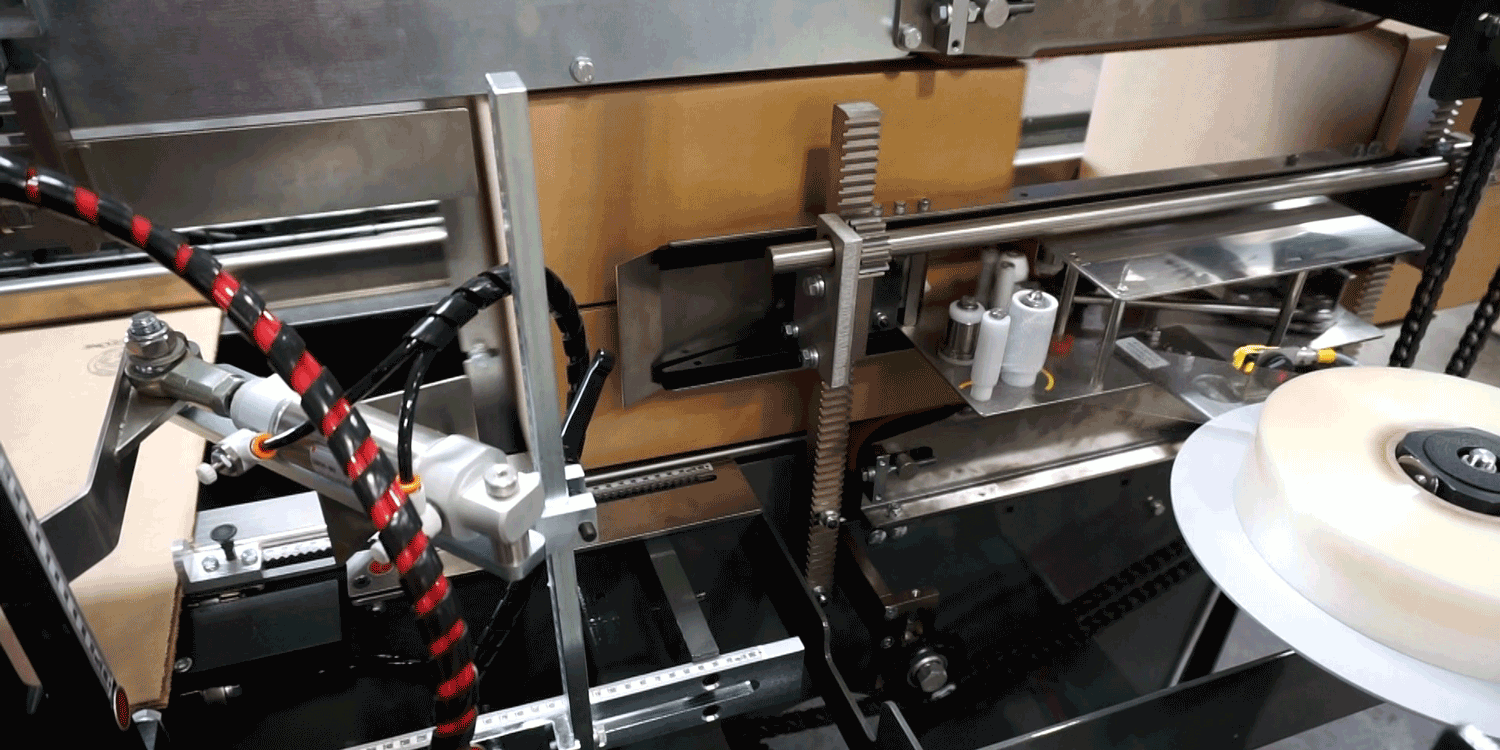

Once erected, a mechanical walking beam transfers the case onto top- and bottom-driven feed belts, guiding it through the taping head of the CE 420T. Here, our precision tape application system securely applies tape to the leading panel, positioning it approximately 2 inches (51mm) from the bottom. To ensure optimal adhesion, a series of rollers and a brush meticulously “buff” the tape, while rear pressure rollers compress the trailing end for a perfectly sealed case. For those using the CE 425G, hot-melt adhesive is applied to the minor flaps before the case proceeds to compression and squaring.

Elevate Your Packaging Efficiency Today!

With SWF CE Series Case Erectors, you can optimize your packaging line for speed, reliability, and efficiency. Experience the advantages of advanced technology in case erecting and sealing. Contact us today to learn more about the CE 420T and CE 425G models and how they can transform your packaging operations!
